Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM5/AM4
Technical Spec
| Net Weight |
1504 g |

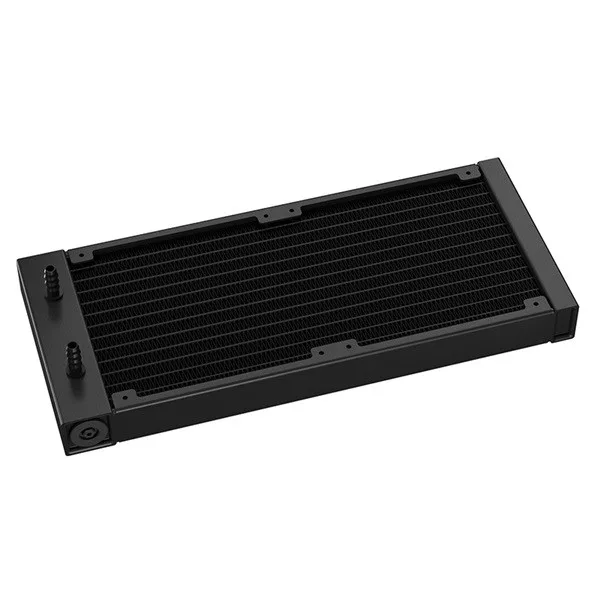

| Radiator Dimensions |
282×120×27 mm |
| Radiator Material |
Aluminum |
| Tube length |
410 mm |
| Pump Dimensions |
94×80×68 mm |
| Pump Speed |
3100 RPM±10% |
| Pump Noise |
19 dB(A) |
| Pump Connector |
3-pin |
| Pump Rated Voltage |
12 VDC |
| Pump Rated Current |
0.38 A |
| Pump Power Consumption |
4.56 W |

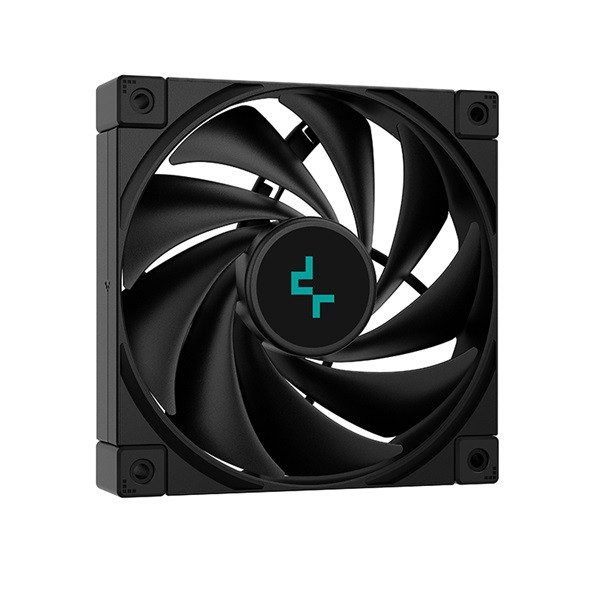

| Fan Dimensions |
120×120×25 mm |
| Fan Speed |
500~2250 RPM±10% |
| Fan Airflow |
85.85 CFM |
| Fan Air Pressure |
3.27 mmAq |
| Fan Noise |
≤32.9 dB(A) |
| Fan Connector |
4-pin PWM |
| Bearing Type |
Fluid Dynamic Bearing |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.22 A |
| Fan Power Consumption |
2.64 W |
| LED Type |
Addressable RGB LED |
| LED Connector |
3-pin(+5V-D-G) |
| LED Rated Voltage |
5 VDC |
| LED Power Consumption |
3.15 W(PUMP) |
| EAN |
6933412727910 |
| P/N |
R-LT520-BKAMNF-G-1 |
